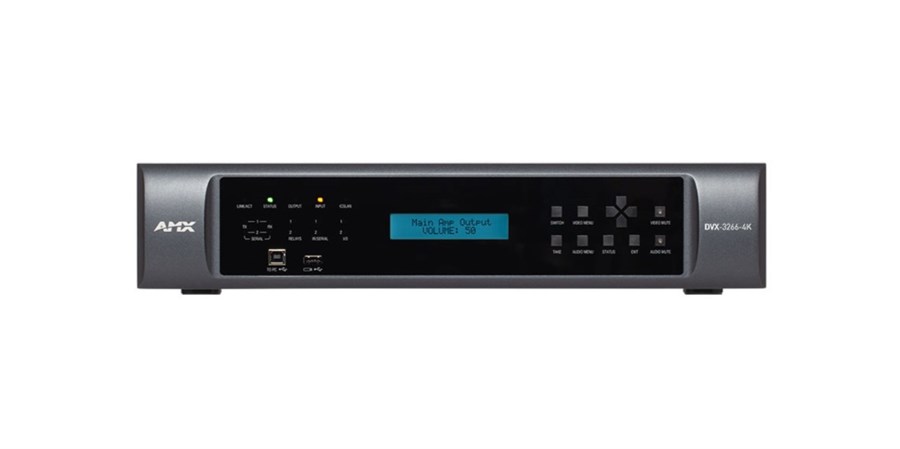

AMX DVX-3266-4K 8x4 All In One Presentation Switchers
Birden fazla cihaz yerine video, ses bileşenlerinizi tek bir cihazda birleştiren DVX-3266
sorunlarınıza çözüm olmayaa geliyor. Kurulum ve kullanım kolaylığı ile ön plana çıkıyor.
konferans ve yönetim kurulu toplantlarında video ve ses dağıtımınıza yardımdı olacak.
Bu ürünü satın almak için medumuzikmarket.com adresinden ulaşabilirsiniz.
Teknik Özellikler
Video Inputs
(4) HDMI, (4) DXLink 4K60
Video Outputs
(4) HDMI; supports HDMI/HDCP. (2) 4K60 DXLink; mirrors associated HDMI outputs; supports digital video, audio, Ethernet and bi-directional control
Video Resolution Support
480p up to 3840x2160 @ 60Hz 4:4:4 and 4:2:2, including 3840x2160p@50/60 Hz, 4:2:0 4096x2160p@50/60 Hz, 4:2:0
See Operations Reference Guide for details for each signal type.
Audio Inputs
(6) Analog Mic/Line, (2) Analog Stereo Audio, (8) Dante Channel. See Data Sheet for details.
Audio Outputs
(1) Amp (8-Ohm and 70/100V), (2) Analog Stereo Audio, (8) Dante Channel. See Data Sheet for details.
RS-232 Port
(2) 3-position 3.5mm Screw Terminal
2 bi-directional serial ports
300 -115,200 baud
IR/Serial
(2) 2-position 3.5mm Screw Terminal, 2 IR Transmit / 1-way Serial ports, Support high-frequency carriers up to 1.142 MHz, 2 IR/Serial data signals can be generated simultaneously.
I/O Channels
(1) 4-position 3.5mm Screw Terminal, 2-channel binary I/O port for contact closure with each input being capable of voltage sensing.
+12V DC and GND Included on the connector
Relays
(2) 4-position 3.5 mm Screw Terminal, (2) single-pole, single-throw relays, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled.
Dimensions (H x W x D)
8.8 cm x 44 cm x 38 cm
