Allen Heath ZED-18 - 18 Kanal Usb'li Deck Mikser
Allen Heath ZED-18 - 18 Kanal Usb'li Deck Mikser en uygun fiyat ve taksit seçenekleriyle medumuzikmarket stoklarındadır

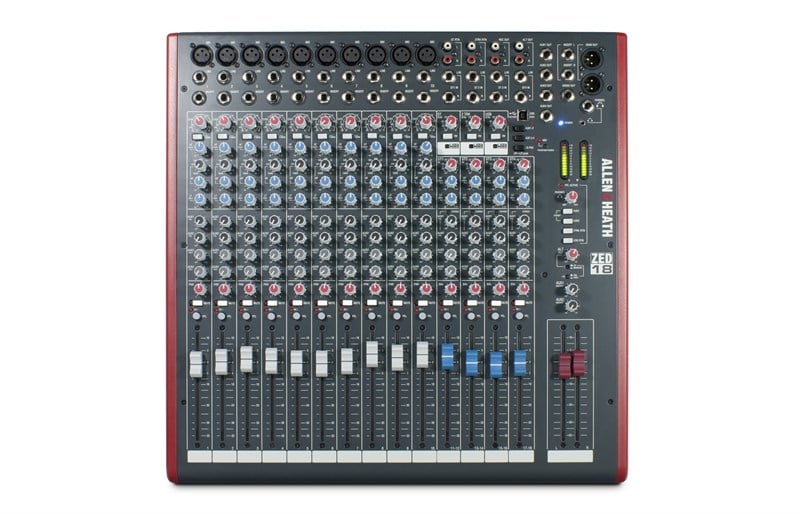

ZED-18 has an incredibly advanced feature-set for a mixer at this level – it gives musicians, venues and hire companies access to 10 full mono channels and 4 stereo channels in a compact, rack mountable format. Configurable USB audio in/out makes it easy to capture stereo recordings
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-
SEND OPTIONS
1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-4
RETURN OPTIONS
1) To Stereo 3 channel
ZED-18 features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.
Based on the proven pre-amps from the hugely successful PA series, ZED-18 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.
10 mono channels
Neutrik mic XLR
Neutrik 1/4 inch jacks
Channel insert
Super wide gain ‘DuoPre’ mic line input
3 band EQ with MusiQ
4 auxes
Illuminated mute
Sound image pan
Illuminated PFL & peak warning indicator
ALPS 100mm faders
4 stereo channels with 2-band EQ
Stereo returns & playback
All inputs with level control
12 bar meters
Mono/stereo function on auxes 1&2
Monitor output section
Alt stereo output source
Configurable USB stereo audio in/out
Global +48V phantom power
Rack ears available
