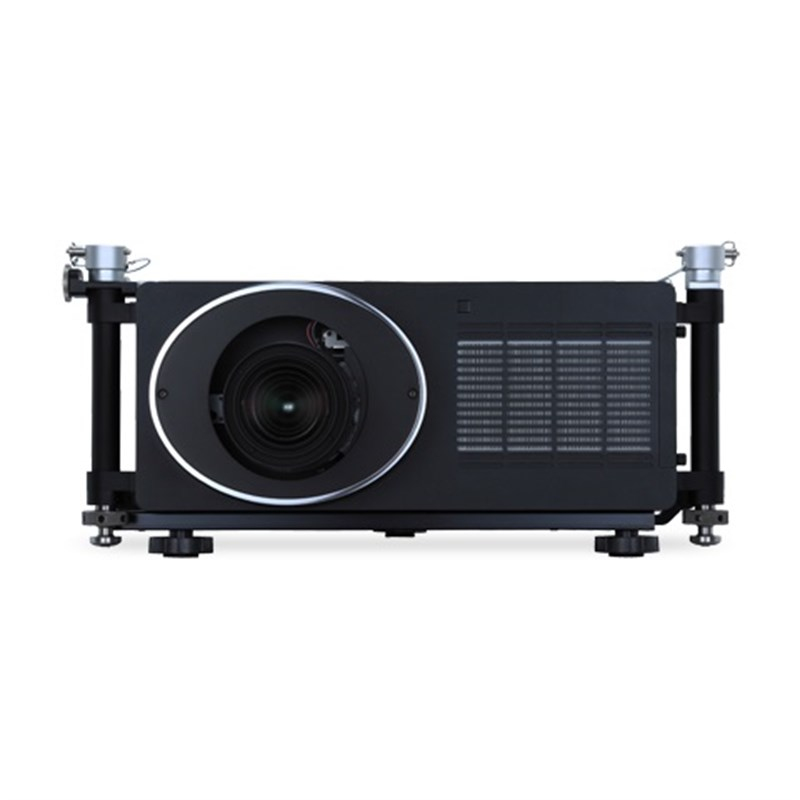

NEC PH1004UL 13500 Lümen 1280x800 HDMI 3 DLP Kurulum Projeksiyon
Display
Aspect Ratio 16x10
Native Resolution WUXGA 1920x1200
Maximum Resolution WUXGA 1920 x 1200
Contrast Ratio (typical) 2000:1
Synchronization Range
Horizontal (Analog/Digital) 15-108 kHz
Vertical 48-120 Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p120
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Power Consumption (typical)
On 1215W / 985W / 90W / 0.5W
Input Current 6.4A
Power Requirements 200-240V AC
Physical Specifications
Dimensions (WxHxD)
Product:22.7 x 9.3 x 22 in. / 578 x 235 x 558mm
Weight - Net Weight:87.1 lbs. / 39.5 kg
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Storage -14-122°F / -10-50°C
Optical
Display Technology DLP (0.96" DMD)
Light Output(Lumens) 14000 center-screen lumen (13,500 ANSI lumen) normal /Eco = approx. 80% of normal mode
Lamp Type 465W AC / 372W eco
Lamp Life (up to) 2500 hours normal / 3000 hours eco
Screen Size (diagonal) 80 to 500 in. / 2 to 12.7m
Throw Ratio Variable
Projection Distance 1.8 to 243 ft. / 0.55 to 74m
Projector Angle 2.7 to 11.2° tele / 4.4 to 15.4° wide
Lens - Zoom:Power Focus:Power F number, fnumber:Variable
Keystone Correction +/- 35° horizontal, +/- 30° vertical
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 45 dB normal / 39 dB eco
